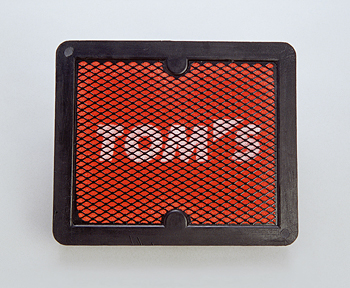

The Super Ram II Air Cleaner was designed to trap airborne dust and debris with minimal air intake resistance. The filter portion of the cleaner features a new triple layered foam material made up of cell structures. This enables trapping more unwanted debris before it reaches the engine than ever before, with the smallest air intake resistance.
- Tom's scrutinized over even the finest dust particles and the materials to make up the filter so maximum power figures can be achieved. They then succeeded in removing the pressure loss commonly seen on polyurethane foam to make up the most efficient unit.
 |
The filter portion of the cleaner features a new triple layered foam material made up of cell structures. This enables trapping more unwanted debris before it reaches the engine than ever before, with the smallest air intake resistance.
 |
 |
| A foam without cellular film removal | A foam with cellular film removal |
|---|
Tom's discovered that the pressure drop is caused by the cellular film present in the filter. A special process removes these unwanted particles.
Air Cleaner "Super Ram II" Application Chart |
||||||
|---|---|---|---|---|---|---|
Vehicle  |
Model |
Year |
Engine Code |
Part Number |
Install Time(H) |
Notes |
| 86(KOUKI) | ZN6 | 2016.7～ | FA20 | 17801-TSR21 | 0.2 | A/T車用 |
| 86(KOUKI) | ZN6 | 2016.7～ | FA20 | 17801-TSR44 | 0.2 | ZN6はM/T車用 |
| 86(ZENKI) | ZN6 | 2012.2～2016.6 | FA20 | 17801-TSR21 | 0.2 | |
| C-HR | ZYX10 / ZYX11 | 2016.12～ | 1NZ-FXE/1KR-FE/2ZR-FXE | 17801-TSR41 | 0.2 | |
| C-HR | NGX10 | 2016.12～ | FA20/8NR-FTS | 17801-TSR44 | 0.2 | |
| C-HR | NGX50 | 2016.12～ | FA20/8NR-FTS | 17801-TSR44 | 0.2 | |
| GR86 | ZN8 | 2021.11～ | FA24 | 17801-TSR44 | 0.2 | |
| GR YARIS | GXPA16 | 2020.9～ | GXPA16 | 17801-TSR48 | 0.1 | M/T |
| RAV4 | ACA3#W | 2005.11～2016.8 | 2AZ-FE/2GR-FE | 17801-TSR32 | 0.2 | |
| RAV4 | AXAH5# | 2019.4～ | A25A-FXS | 17801-TSR44 | 0.2 | |
| RAV4 | MXAA5# | 2019.4～ | M20A-FKS | 17801-TSR48 | 0.2 | ガゾリン車用 |
| SAI | AZK1# | 2009.12～ | 2AZ-FXE/2AR-FXE | 17801-TSR39 | 0.1 | |
| ISIS | ANM1# / ZGM1# / ZNM10 | 2004.9～ | 1ZZ-FE/1AZ-FSE/#ZR-FAE | 17801-TSR21 | 0.2 | |
| PRIUS C / AQUA | NHP10 | 2011.12～ | 1NZ-FXE/1KR-FE/2ZR-FXE | 17801-TSR41 | 0.2 | |
| AVENSIS | AZT25# | 2003.10～2008.12 | 1ZZ-FE/1AZ-FSE/#ZR-FAE | 17801-TSR21 | 0.2 | |
| ARISTO | JZS16# | 1997.8～2005.8 | #JZ-GE/#JZ-FSE 3S-GE/ | 17801-TSR20 | 0.2 | |
| ALTEZZA | SXE1# | 2001.5～2005.7 | #JZ-GE/#JZ-FSE 3S-GE/ | 17801-TSR20 | 0.2 | |
| ALTEZZA_GITA | JCE1#W | 2001.7～2005.7 | #JZ-GE/#JZ-FSE 3S-GE/ | 17801-TSR20 | 0.2 | |
| ALPHARD | GGH2#W / ANH2#W | 2008.5～2014.12 | 2AZ-FE/2GR-FE | 17801-TSR32 | 0.2 | |
| ALPHARD | ATH20W | 2011.10～2014.12 | 2AZ-FXE | 17801-TSR42 | 0.3 | |
| ALPHARD | AGH3# / GGH3# | 2015.1～2023.5 | #GR-FSE/2AR-FSE | 17801-TSR36 | 0.2 | |
| ist | NCP11# | 2007.7～ | 1NZ-FE/#ZR# | 17801-TSR40 | 0.2 | |
| ist | ZSP110 | 2006.10～ | 1NZ-FE/#ZR# | 17801-TSR40 | 0.2 | |
| IPSUM | ACM2# | 2001.5～ | 1ZZ-FE/1AZ-FSE/#ZR-FAE | 17801-TSR21 | 0.2 | |
| VANGUARD | ACA3# / GSA33 | 2007.8～ | 2AZ-FE/2GR-FE | 17801-TSR32 | 0.2 | |
| WISH | ANE1# / ZNE1# | 2003.1～2009.3 | 1ZZ-FE/1AZ-FSE/#ZR-FAE | 17801-TSR21 | 0.2 | |
| VELLFIRE | GGH2#W / ANH2#W | 2008.5～2014.12 | 2AZ-FE/2GR-FE | 17801-TSR32 | 0.2 | |
| VELLFIRE | ATH20W | 2011.10～2014.12 | 2AZ-FXE | 17801-TSR42 | 0.3 | |
| VELLFIRE | AGH3# / GGH3# | 2015.1～2023.5 | #GR-FSE/2AR-FSE | 17801-TSR36 | 0.2 | |
| VEROSSA | JZX11# | 2001.6～2004.10 | #JZ-GE/#JZ-FSE 3S-GE/ | 17801-TSR20 | 0.2 | |
| VOXY | AZR6#G | 2001.11～2007.5 | 1ZZ-FE/1AZ-FSE/#ZR-FAE | 17801-TSR21 | 0.2 | |
| VOXY | ZWR80G | 2014～ | 2ZR-FXE/2AR-FXE | 17801-TSR38 | 0.2 | |
| ESTIMA | ACR5#W/ GSR5#W | 2006.1～ | 2AZ-FE/2GR-FE | 17801-TSR32 | 0.2 | |
| ESTIMA_HYBRID | AHR20W | 2006.6～ | 2AZ-FXE | 17801-TSR42 | 0.3 | |
| CAMRY | AVV50 | 2011.8～2017.6 | 2AZ-FXE/2AR-FXE | 17801-TSR39 | 0.1 | |
| CAMRY | AXVH70 | 2017.7～2021.1 | A25A-FXS | 17801-TSR44 | 0.2 | |
| CAMRY | AXVH75 | 2019,.10～2021.1 | A25A-FXS | 17801-TSR44 | 0.2 | |
| CALDINA | AZT24# | 2002.9～2004.12 | 1ZZ-FE/1AZ-FSE/#ZR-FAE | 17801-TSR21 | 0.2 | |
| CALDINA | ZZT241W | 2002.9～2007.6 | 1ZZ-FE/1AZ-FSE/#ZR-FAE | 17801-TSR21 | 0.2 | |
| COROLLA SPACIO | NZE12# | 2001.5～2007.6 | 1ZZ-FE/1AZ-FSE/#ZR-FAE | 17801-TSR21 | 0.2 | |
| COROLLA SPACIO | ZZE12# | 2001.5～2007.6 | 1ZZ-FE/1AZ-FSE/#ZR-FAE | 17801-TSR21 | 0.2 | |
| COROLLA SPORT | ZWE21# | 2018.6～ | 1NZ-FXE/1KR-FE/2ZR-FXE | 17801-TSR41 | 0.2 | |
| COROLLA SPORT | NRE21# | 2018.6～ | FA20/8NR-FTS | 17801-TSR44 | 0.2 | |
| COROLLA TOURING | ZWE21#W | 2019.9～ | 1NZ-FXE/1KR-FE/2ZR-FXE | 17801-TSR41 | 0.2 | |
| COROLLA TOURING | ZRE212W / NRE210 | 2019.9～ | FA20/8NR-FTS | 17801-TSR44 | 0.2 | |
| COROLLA_FIELDER | NZE12# | 2000.8 ～2006.9 | 1ZZ-FE/1AZ-FSE/#ZR-FAE | 17801-TSR21 | 0.2 | |
| COROLLA_FIELDER | ZZE12# | 2000.8 ～2006.9 | 1ZZ-FE/1AZ-FSE/#ZR-FAE | 17801-TSR21 | 0.2 | |
| CROWN | ARS220 / GWS224 | 2018.6～ | 8GR-FXS/8AR-FTS | 17801-TSR46 | 0.1 | |
| CROWN_ATHLETE | GRS184 | 2005.10～2008.1 | #GR-FSE/ 3UZ-FE | 17801-TSR31 | 0.2 | |
| CROWN_ATHLETE | GRS180,182 | 2003.12～2008.1 | 2/3/43GR-FSE/3UZ-FE | 17801-TSR27 | 0.2 | |
| CROWN_ATHLETE | AWS210 | 2012.12～2018.5 | #GR-FSE/2AR-FSE | 17801-TSR36 | 0.2 | |
| CROWN_ATHLETE | GRS20# | 2008.2～2012.12 | #GR-FSE/2AR-FSE | 17801-TSR36 | 0.2 | |
| CROWN_ATHLETE | GRS21# | 2012.12～2018.5 | #GR-FSE/2AR-FSE | 17801-TSR36 | 0.2 | |
| CROWN_ESTATE | JZS17#W | 1999.12～2007.6 | #JZ-GE/#JZ-FSE 3S-GE/ | 17801-TSR20 | 0.2 | |
| CROWN_HYBRID | GWS204 | 2008.5～2012.12 | 2/3/43GR-FSE/3UZ-FE | 17801-TSR27 | 0.2 | |
| CROWN_MAJESTA | UZS186 | 2004.7～2009.2 | 2/3/43GR-FSE/3UZ-FE | 17801-TSR27 | 0.2 | |
| CROWN_ROYAL | GRS20# | 2008.2～2012.12 | #GR-FSE/2AR-FSE | 17801-TSR36 | 0.2 | |
| CROWN_ROYAL | GRS21# | 2012.12～2018.6 | #GR-FSE/2AR-FSE | 17801-TSR36 | 0.2 | |
| CELSIOR | UCF3# | 2000.8～2006.8 | #UZ-FE | 17801-TSR24 | 0.2 | |
| SOARER | UZZ40 | 2001.4～2005.8 | 2/3/43GR-FSE/3UZ-FE | 17801-TSR27 | 0.2 | |
| NOAH | AZR6#G | 2001.11～2007.5 | 1ZZ-FE/1AZ-FSE/#ZR-FAE | 17801-TSR21 | 0.2 | |
| NOAH | ZWR80G | 2014.1～ | 2ZR-FXE/2AR-FXE | 17801-TSR38 | 0.2 | |
| PRIUS | ZVW5# | 2015.11～ | 1NZ-FXE/1KR-FE/2ZR-FXE | 17801-TSR41 | 0.2 | |
| PRIUS | ZVW30 | 2009.5～2015.12 | 2ZR-FXE/2AR-FXE | 17801-TSR38 | 0.2 | |
| PRIUS | ZVW35 | 2014.5～2015.12 | 2ZR-FXE/2AR-FXE | 17801-TSR38 | 0.2 | |
| PRIUS V / PRIUS ALFA | ZVW4# | 2011.05～2014.5 | 2ZR-FXE/2AR-FXE | 17801-TSR38 | 0.2 | |
| BLADE/BLADE_MASTER | AZE15# / GRE156 | 2006.12～2010.3 | 2AZ-FE/2GR-FE | 17801-TSR32 | 0.2 | |
| BREVIS | JCG1# | 2001.5～2007.6 | #JZ-GE/#JZ-FSE 3S-GE/ | 17801-TSR20 | 0.2 | |
| PROGRES | JCG1# | 1998.10～2007.6 | #JZ-GE/#JZ-FSE 3S-GE/ | 17801-TSR20 | 0.2 | |
| MARK2 | JZX11# | 2000.10～2004.10 | #JZ-GE/#JZ-FSE 3S-GE/ | 17801-TSR20 | 0.2 | |
| MARK2_BLIT | JZX11# | 2002.1～2007.6 | #JZ-GE/#JZ-FSE 3S-GE/ | 17801-TSR20 | 0.2 | |
| MARK_X | GRX13# | 2009.10～ | #GR-FSE/2AR-FSE | 17801-TSR36 | 0.2 | |
| MARK_X | GRX12# | 2004.11～2009.9 | #GR-FSE/ 3UZ-FE | 17801-TSR31 | 0.2 | |
| MARKX_Zio | ANA1# / GGA10 | 2007.8～ | 2AZ-FE/2GR-FE | 17801-TSR32 | 0.2 | |
| YARIS | MXPH1# | 2019.12～ | 17801-TSR47 | 0.2 | ハイブリッド車用 | |
| LAND CRUISER | UZJ200W / URJ202W | 2007.8～2015.8 | 2UZ-FE/1UR-FE | 17801-TSR34 | 0.1 | 【販売終了】 |
| LEXUS CT | ZWA10 | H29.12～2017.8 | 2ZR-FXE/2AR-FXE | 17801-TSR38 | 0.2 | |
| LEXUS ES | AXZH1# | 2018.10～ | A25A-FXS | 17801-TSR44 | 0.2 | |
| LEXUS_GS | GRL1# | 2011.12～ | #GR-FSE/2AR-FSE | 17801-TSR36 | 0.2 | |
| LEXUS_GS | GRS19# | 2005.8～2011.12 | #GR-FSE/ 3UZ-FE | 17801-TSR31 | 0.2 | |
| LEXUS_GS | UZS190 | 2005.8～2007.9 | #GR-FSE/ 3UZ-FE | 17801-TSR31 | 0.2 | |
| LEXUS_GS | GWS191 | 2006.2～2009.9 | 2/3/43GR-FSE/3UZ-FE | 17801-TSR27 | 0.2 | |
| LEXUS GS F | URL10 | 2015.11～2019.9 | 2UR-GSE | 17801-TSR35 | 0.2 | |
| LEXUS HS | ANF10 | 2009.7～2017.3 | 2AZ-FXE/2AR-FXE | 17801-TSR39 | 0.1 | |
| LEXUS_IS | AVE30 | 2013.4～2020.10 | #GR-FSE/2AR-FSE | 17801-TSR36 | 0.2 | |
| LEXUS_IS | GSE3# | 2013.4～2020.10 | #GR-FSE/2AR-FSE | 17801-TSR36 | 0.2 | |
| LEXUS_IS | GSE2# | 2005.8～2013.4 | #GR-FSE/ 3UZ-FE | 17801-TSR31 | 0.2 | |
| LEXUS_IS-F | USE20 | 2007.11～2014.5 | 2UR-GSE | 17801-TSR35 | 0.2 | |
| LEXUS LC | URZ100 | 2017.3～ | 17801-TSR45 | 0.2 | ||
| LEXUS LC | GWZ100 | 2017.3～ | 8GR-FXS/8AR-FTS | 17801-TSR46 | 0.1 | |
| LEXUS_LS | USF4# / UVF4# | 2006.8～ | 1UR-FSE/2UR-FSE | 17801-TSR33 | 0.2 | 2個(1台分)入り |
| LEXUS_LS | VXFA5# | 2017.10～ | 17801-TSR45 | 0.2 | ||
| LEXUS_LS | GVF5# | 2017.10～ | 8GR-FXS/8AR-FTS | 17801-TSR46 | 0.1 | |
| LEXUS NX | AYZ1# | 2014.7～ | 2ZR-FXE/2AR-FXE | 17801-TSR38 | 0.2 | |
| LEXUS NX | AGZ1# | 2014.7～ | 2GR-FE/1AR-FE/ 8AR-FTS | 17801-TSR37 | 0.2 | |
| LEXUS RC-F | USC10 | 2014.01～2019.04 | 2UR-GSE | 17801-TSR35 | 0.2 | |
| LEXUS_RX | GYL2# | 2015.10～2019.8 | 2GR-FXS | 17801-TSR43 | 0.2 | |
| LEXUS_RX | AGL2# | 2015.10～2019.8 | 2GR-FE/1AR-FE/ 8AR-FTS | 17801-TSR37 | 0.2 | |
| LEXUS_RX | GGL1#W / AGL10W | 2008.12～2015.10 | 2GR-FE/1AR-FE/ 8AR-FTS | 17801-TSR37 | 0.2 | |
| LEXUS_SC | UZZ40 | 2005.8～2010.3 | 2/3/43GR-FSE/3UZ-FE | 17801-TSR27 | 0.2 | |
| LEXUS UX | MZAA10 | 2018.10～ | FA20/8NR-FTS | 17801-TSR44 | 0.2 | |
| LEXUS UX | MZAH1# | 2018.10～ | 17801-TSR47 | 0.2 | ハイブリッド車用 | |
