H.I.D. Conversion Kit

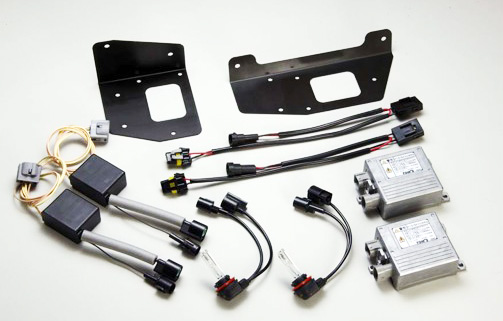

H.I.D. Fog Lamp Conversion Kit

[Product Image]
[Product Image]
[Example] [Example]
[Example]

- Features
Converts factory OEM halogen lamp to a HID system. By upgrading to a HID system, the light intensity on the fog lamps are increased as well as improved color characteristics.

- Specs

  • Converts factory OEM halogen lamps to HID (Xenon).
  • Includes: HID Bulb, 25w Ballast, Ballast Mounts 2pcs, Relay Harness, Misc Hardware
  • Bulb Specification: HB3/4, H8/9/11
  • Voltage: 12.0v
  • Color Temp: 5500k

H.I.D. Fog Lamp Conversion Kit* Product will not fit with internal housing clearance under 51mm.
* Product is designed for universal fitment and may require modifications depending on some applications.
* Light color may look different on some applications due to varying shapes of the fog light housing (size of fog lamp, front lens, reflector). Color of light may vary depending on angle.
* Adjustments to light angle necessary after installation.

Prius (ZVW30) H.I.D. Head Lamp Conversion Kit

プリウス(ZVW30)用専用 H.I.Dヘッドランプコンバージョンキット
[Product Image]

- Specs

  • Converts factory OEM halogen lamps to HID (Xenon).
  • Includes: HID Bulb, 35w Ballast, Igniter, Ballast Mounts 2pcs, Misc Hardware
  • Bulb Specification: H11
  • Voltage: 12.0v
  • Color Temp: 5500k

* Product will not fit on Touring Selection models (equipped with LED lamps).
* Product is for low beam only and cannot be installed on high beam or fog lamps.
* H.I.D. bulbs may experience a change in light color over time. Each side will vary in the amount of change.
* Front bumper required to be taken off for installation.
* Vehicle registration required to be done before installation.

H.I.D. FOG LAMP COMVERSION KIT Application Chart

Vehicle車種車種 Model型式型式 Gradeグレードグレード Year年式年式 Product ID商品名商品名 Part Number 品番品番 Specs 仕様仕様 Install Time(H) Install Time(H)Install Time(H) Notes備考備考
- - - -~- H.I.D. Fog Lamp Conversion Kit(H8/9/11) 5700K 81001-TSF02【販売終了】 *Includes: HID Bulb, 35w Ballast, Ballast Mounts 2pcs, Relay Harness, Misc Hardware *Bulb Specification: H8/9/11 *Voltage: 12.0v *Color Temp: 5700k 2.0 Fog Lamp
- - - -~- H.I.D. Fog Lamp Conversion Kit(HB3/4) 5700K soldout 81001-TSF01 *Includes: HID Bulb, 35w Ballast, Ballast Mounts 2pcs, Relay Harness, Misc Hardware *Bulb Specification: HB3/4 *Voltage: 12.0v *Color Temp: 5700k 2.0 FOG LAMP soldout
SAI AZK10 S 2009.12~2013.8 H.I.D. Fog Lamp Conversion Kit(H8/9/11) 5700K 81001-TSF02【販売終了】 *Includes: HID Bulb, 35w Ballast, Ballast Mounts 2pcs, Relay Harness, Misc Hardware *Bulb Specification: H8/9/11 *Voltage: 12.0v *Color Temp: 5700k 2.0 Fog Lamp
ESTIMA ACR5#W/ GSR5#W G/X 2006.1~ H.I.D. Fog Lamp Conversion Kit(H8/9/11) 5700K 81001-TSF02【販売終了】 *Includes: HID Bulb, 35w Ballast, Ballast Mounts 2pcs, Relay Harness, Misc Hardware *Bulb Specification: H8/9/11 *Voltage: 12.0v *Color Temp: 5700k 2.0 Fog Lamp
CROWN_ATHLETE GRS20# ALL 2008.2~2012.12 H.I.D. Fog Lamp Conversion Kit(H8/9/11) 5700K 81001-TSF02【販売終了】 *Includes: HID Bulb, 35w Ballast, Ballast Mounts 2pcs, Relay Harness, Misc Hardware *Bulb Specification: H8/9/11 *Voltage: 12.0v *Color Temp: 5700k 2.0 Fog Lamp
PRIUS ZVW30 ALL 2009.5~2011.12 H.I.D. Fog Lamp Conversion Kit(H8/9/11) 5700K 81001-TSF02【販売終了】 *Includes: HID Bulb, 35w Ballast, Ballast Mounts 2pcs, Relay Harness, Misc Hardware *Bulb Specification: H8/9/11 *Voltage: 12.0v *Color Temp: 5700k 2.0 Fog Lamp
PRIUS V / PRIUS ALFA ZVW4# ALL 2011.05~2014.5 H.I.D. Fog Lamp Conversion Kit(H8/9/11) 5700K 81001-TSF02【販売終了】 *Includes: HID Bulb, 35w Ballast, Ballast Mounts 2pcs, Relay Harness, Misc Hardware *Bulb Specification: H8/9/11 *Voltage: 12.0v *Color Temp: 5700k 2.0 Fog Lamp
MARK_X GRX13# ALL 2009.10~ H.I.D. Fog Lamp Conversion Kit(H8/9/11) 5700K 81001-TSF02【販売終了】 *Includes: HID Bulb, 35w Ballast, Ballast Mounts 2pcs, Relay Harness, Misc Hardware *Bulb Specification: H8/9/11 *Voltage: 12.0v *Color Temp: 5700k 2.0 Fog Lamp
LEXUS CT ZWA10 ALL 2010.12~2013.12 H.I.D. Fog Lamp Conversion Kit(H8/9/11) 5700K 81001-TSF02【販売終了】 *Includes: HID Bulb, 35w Ballast, Ballast Mounts 2pcs, Relay Harness, Misc Hardware *Bulb Specification: H8/9/11 *Voltage: 12.0v *Color Temp: 5700k 2.0 Fog Lamp
LEXUS_IS GSE2# ALL 2005.8~2013.4 H.I.D. Fog Lamp Conversion Kit(H8/9/11) 5700K 81001-TSF02【販売終了】 *Includes: HID Bulb, 35w Ballast, Ballast Mounts 2pcs, Relay Harness, Misc Hardware *Bulb Specification: H8/9/11 *Voltage: 12.0v *Color Temp: 5700k 2.0 Fog Lamp
LEXUS_IS-F USE20 IS-F 2007.11~2014.5 H.I.D. Fog Lamp Conversion Kit(H8/9/11) 5700K 81001-TSF02【販売終了】 *Includes: HID Bulb, 35w Ballast, Ballast Mounts 2pcs, Relay Harness, Misc Hardware *Bulb Specification: H8/9/11 *Voltage: 12.0v *Color Temp: 5700k 2.0 Fog Lamp
