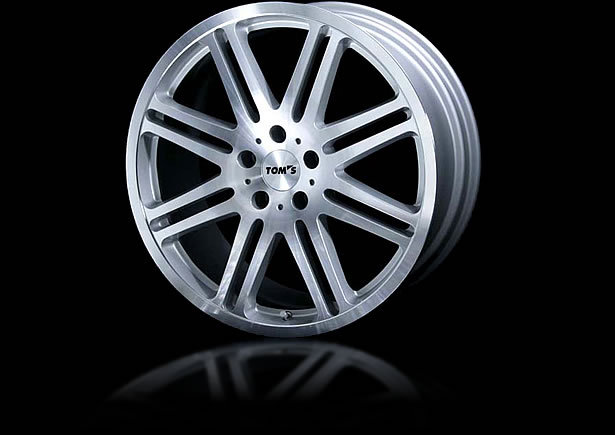

The lightweight and strong wheels are made with the same 8000t press machine used to construct wheels for F1 machines. TOM'S traditional designs were incorporated to bring the modern elegant Toyota to a sportier state. Due to its increased lightweight and comfort factors of aluminum constructed wheels, the driver can enjoy a safer piece of mind.
- Specs/ Forged One Piece Aluminum 11.1kg (19x8.5J)
- Color/ Die Cut
VP-8 20/19 Inch MSRP Chart |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Size | OFFSET | P.C.D. | HOLE | Color | Reference Weight | |||
| 42610-VP801-D5 | 20 x 8.5J | 35 | 120 | 5 | Die Cut | 12.7kg | |||
| 42610-VP802-D5 | 20 x 9.5J | 35 | 120 | 5 | Die Cut | 13.3kg | |||
| 42610-VP801-D1 | 19 x 8.5J | 45 | 114.3 | 5 | Die Cut | 11.1kg | |||
| 42610-VP801-D4 | 19 x 8.5J | 30 | 114.3 | 5 | Die Cut | 11.4kg | |||
| 42610-VP802-D1 | 19 x 9.5J | 45 | 114.3 | 5 | Die Cut | 11.8kg | |||
| 42610-VP802-D4 | 19 x 9.5J | 25 | 114.3 | 5 | Die Cut | 12.2kg | |||
Accessories: Center Cap (42621-VP101) MSRP
Air Valve (42622-VP101) MSRP
VP-8 Application Chart |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Vehicle  |
Model |
F/R |
Part Number |
Size |
OFFSET |
P.C.D. |
HOLE |
Color |
Reference Weight |
Tire Size |
Install Time(H) |
Notes |
| ARISTO | JZS16# | F/R | 42610-VP801-D1 | 19×8.5J | 45 | 114.3 | 5 | Die Cut | 11.1kg | 245/35ZR19 | 2.2 | |
| ARISTO | JZS16# | R | 42610-VP802-D1 | 19×9.5J | 45 | 114.3 | 5 | Die Cut | 11.8kg | 275/30R19 | 2.2 | ※2 |
| ALPHARD | GGH2#W / ANH2#W | F/R | 42610-VP801-D1 | 19×8.5J | 45 | 114.3 | 5 | Die Cut | 11.1kg | 235/40ZR19 | 2.2 | |
| CROWN_ATHLETE | GRS20# | F/R | 42610-VP801-D1 | 19×8.5J | 45 | 114.3 | 5 | Die Cut | 11.1kg | 225/40ZR19 | 2.2 | |
| CROWN_HYBRID | GWS204 | F/R | 42610-VP801-D1 | 19×8.5J | 45 | 114.3 | 5 | Die Cut | 11.1kg | 225/40ZR19 | 2.2 | |
| CROWN_MAJESTA | UZS186 | R | 42610-VP802-D1 | 19×9.5J | 45 | 114.3 | 5 | Die Cut | 11.8kg | 275/30ZR19 | 2.2 | ※2 |
| CROWN_MAJESTA | UZS18# | F/R | 42610-VP801-D1 | 19×8.5J | 45 | 114.3 | 5 | Die Cut | 11.1kg | 245/35ZR19 | 2.2 | |
| CROWN_ROYAL | GRS20# | F/R | 42610-VP801-D1 | 19×8.5J | 45 | 114.3 | 5 | Die Cut | 11.1kg | 225/40ZR19 | 2.2 | |
| CELSIOR | UCF3# | R | 42610-VP802-D1 | 19×9.5J | 45 | 114.3 | 5 | Die Cut | 11.8kg | 275/35ZR19 | 2.2 | ※2 |
| CELSIOR | UCF2# | F/R | 42610-VP801-D1 | 19×8.5J | 45 | 114.3 | 5 | Die Cut | 11.1kg | 245/40ZR19 | 2.2 | |
| CELSIOR | UCF3# | F/R | 42610-VP801-D1 | 19×8.5J | 45 | 114.3 | 5 | Die Cut | 11.1kg | 245/40ZR19 | 2.2 | |
| SOARER | UZZ40 | R | 42610-VP802-D4 | 19×9.5J | 25 | 114.3 | 5 | Die Cut | 12.2kg | 275/30ZR19 | 2.2 | ※2 ※3 |
| SOARER | UZZ40 | F/R | 42610-VP801-D4 | 19×8.5J | 30 | 114.3 | 5 | Die Cut | 11.4kg | 245/35ZR19 | 2.2 | ※2 ※3 |
| LEXUS_GS | GRS191 / UZS190 / URS190 / GWS191 | R | 42610-VP802-D1 | 19×9.5J | 45 | 114.3 | 5 | Die Cut | 11.8kg | 275/30ZR19 | 2.2 | 【販売終了】※1 ※2 ※3 |
| LEXUS_GS | GWL10 / GRL1# /ARL10 | F/R | 42610-VP801-D1 | 19×8.5J | 45 | 114.3 | 5 | Die Cut | 11.1kg | 235/40R19 ※\\\"F-SPORST”は装着不可 | 2.2 | ※1 ※3 |
| LEXUS_GS | GRS19# / UZS190 / URS190 / GWS191 | F/R | 42610-VP801-D1 | 19×8.5J | 45 | 114.3 | 5 | Die Cut | 11.1kg | 245/35ZR19 | 2.2 | ※1 |
| LEXUS_IS | GSE2# | F/R | 42610-VP801-D1 | 19×8.5J | 45 | 114.3 | 5 | Die Cut | 11.1kg | 225/35ZR19 | 2.2 | ※1 |
| LEXUS_IS | GSE21,20 | R | 42610-VP802-D1 | 19×9.5J | 45 | 114.3 | 5 | Die Cut | 11.8kg | 255/35ZR19 | 2.2 | ※1 ※2 |
| LEXUS_LS | USF40 | R | 42610-VP802-D5 | 20×9.5J | 35 | 120 | 5 | Die Cut | 13.3 | 275/35ZR20 | 2.2 | ※1 ※2 |
| LEXUS_LS | USF4# / UVF4# | F/R | 42610-VP801-D5 | 20×8.5J | 35 | 120 | 5 | Die Cut | 12.7 | 245/40ZR20 | 2.2 | ※1 |
| LEXUS_SC | UZZ40 | F/R | 42610-VP801-D4 | 19×8.5J | 30 | 114.3 | 5 | Die Cut | 11.4kg | 245/35ZR19 | 2.2 | ※1 ※3 |
| LEXUS_SC | UZZ40 | R | 42610-VP802-D4 | 19×9.5J | 25 | 114.3 | 5 | Die Cut | 12.2kg | 275/30ZR19 | 2.2 | ※1 ※2 ※3 |
*1: Some modifications to inner fenders may be necessary when tires come in contact with fenders.
*2: Vehicle height may decrease approx 30mm since it is tuner size. Fender protrusion and tire contact with fenders may be present depending on application. Inner fenders may require modification if interference contact is present.
*3: Tire Pressure Sensor can be used.
* Please research proper tire size prior to installation due to discrepancies in fender clearance and different brand tires.
* Tire chains may not fit on product. Please refer to above chart and acknowledge the change in tire diameter and road index before applying changes.
